BreadMate XMega PDI boards - Pictures

A trio of breadboard-friendly DIL format boards for Atmel XMega A4 microcontrollers

Included with the USB version.

USB version

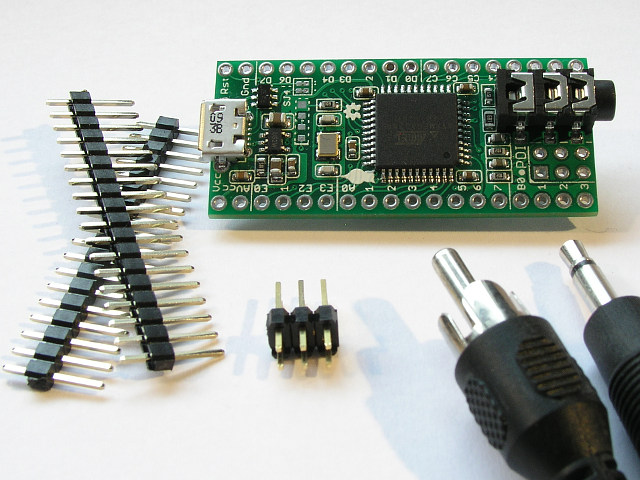

Included with the AV version.

AV version


The vanilla XMega PDI board in use on a prototyping breadboard.

In use on a breadboard


Included with the vanilla version.

Vanilla version


The underside of the vanilla version

Bottom of the vanilla


The topside of the vanilla version

The vanilla board's topside


Closeup on the XMega32A4U

Closeup detail from the USB version


Detail of the AV's solder jumpers

Detail of the AV's solder jumpers
