BreadMate USB XMega PDI - Pictures

An open-source, breadboard-friendly, DIL format, USB XMega A4 board

What's included with the USB version.

USB Powered

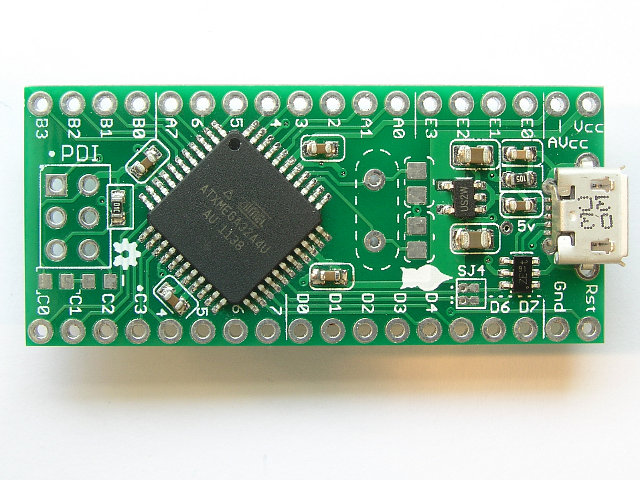

The topside of the USB XMega PDI board (v1b)

Top of the XMega USB board

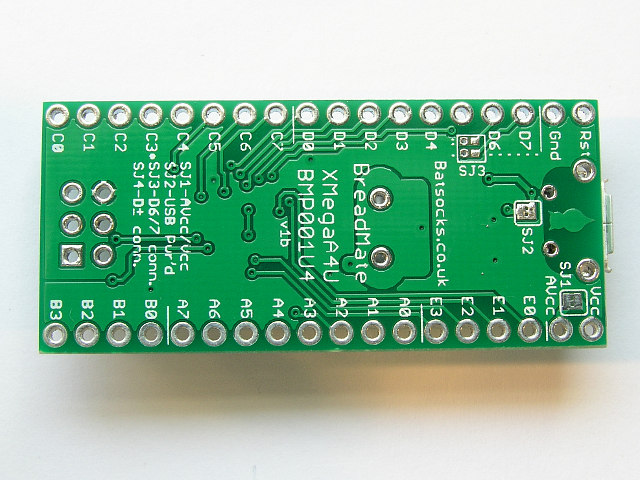

The underside of the USB XMega PDI board (v1b)

USB board's underside


Closeup of the XMega32A4U's pins

Closeup detail from the USB version (board v1a)
